175217-2
Manufacturer:
TE Connectivity
Mfr.Part #:
175217-2
Datasheet:
Description:

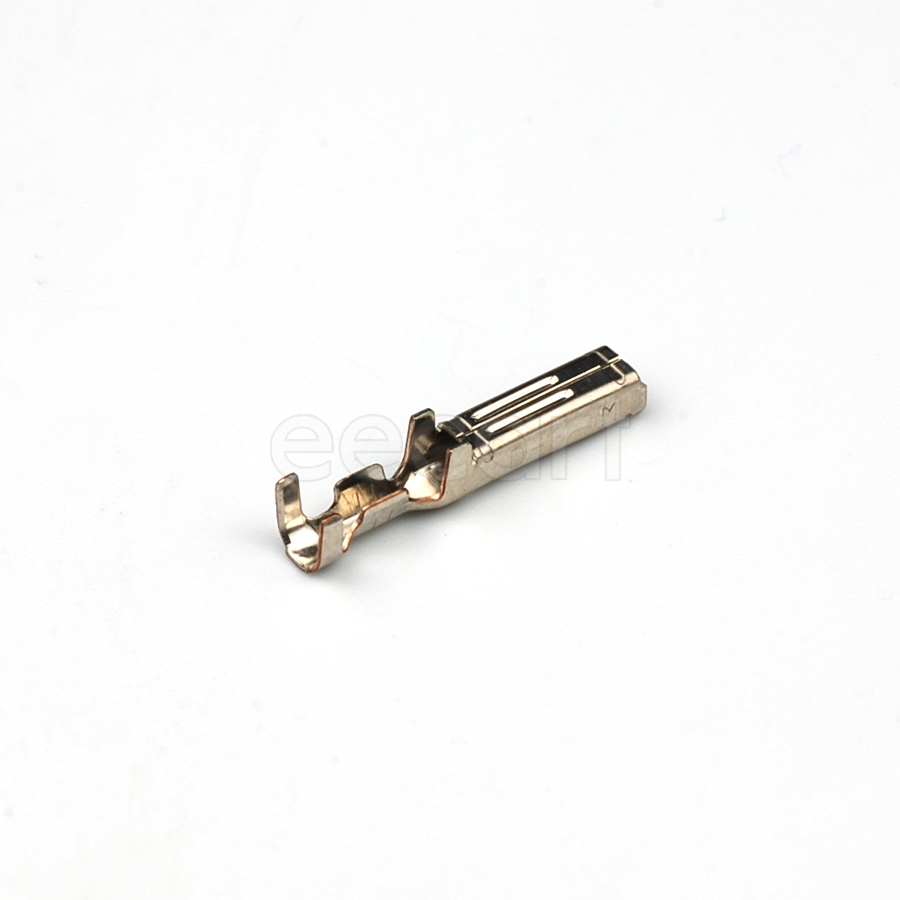

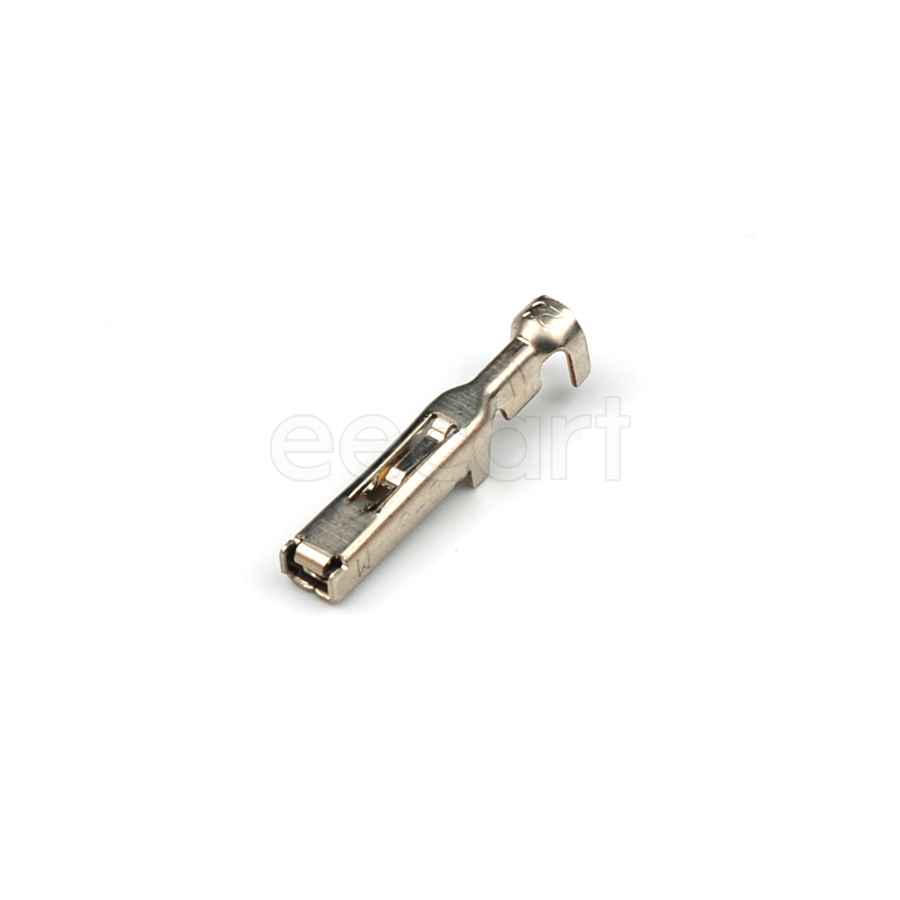

Headers and Wire Housings Through Hole Socket
| Parameter | Value |
|---|---|
| Length | 17.78 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 3.6 mm |
| Packaging | Bulk |
| Depth | 3.6 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Current Rating | 15 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Gender | Female |
| Shielding | Unshielded |
| ELV | Compliant |
| Connector Type | Socket |
| Wire/Cable Gauge | 20 AWG |
| Connector System | Wire-to-Wire |
| Contact Style | Socket |
| Contact Current Rating | 15 A |
| Wire Gauge (Max) | 20 AWG |
| Wire Gauge (Min) | 24 AWG |
| Insulation Diameter | 2.6 mm |
| Contact Gender | Female |
| Underplate Material | Nickel |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Contact Retention | With |
Stock: 27
Distributors
pcbx
pcbxUnit Price$0.51715
Ext.Price$0.51715
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.51715 | $0.51715 |
| 10 | $0.50554 | $5.05540 |
| 25 | $0.50240 | $12.56000 |
| 50 | $0.49927 | $24.96350 |
| 100 | $0.49616 | $49.61600 |
